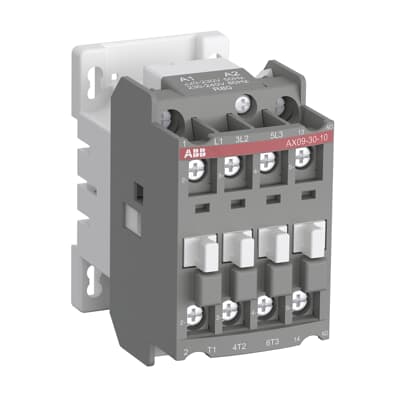

ABB AX09 - 380V 9-22A
ABB AX09 - 380V 9-22A
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Contactor
Dimensions
Product Net Width:
44 mm
Product Net Depth / Length:
74 mm
Product Net Height:
74 mm
Product Net Weight:
0.326 kg
Technical
Number of Main Contacts NO:
3
Number of Main Contacts NC:
0
Number of Auxiliary Contacts NO:
1
Number of Auxiliary Contacts NC:
0
Rated Operational Voltage:
Auxiliary Circuit 690 V
Main Circuit 690 V
Rated Frequency (f):
Auxiliary Circuit 50 / 60 Hz
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 24 A
acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-1 (Ie):
(220 / 240 V) 55 °C 22 A
(690 V) 40 °C 22 A
(690 V) 70 °C 18 A
